- Simple Trace™ Operating System; NO EXTERNAL SOFTWARE OR CAD SKILLS REQUIRED!
- ArcDroid™ has an optimal cutting reach of 26” x 15” (660 x 380 mm)
- Fusion 360 and SheetCAM and QCAD/CAM compatible
- Powerful touch screen interface. No external PC required!
- Get more out of your plasma cutter
- Everything you need to get started
- Import duty and taxes may be charged upon arrival, please check you local regulations.
- NOTE: ArcDroid™ is not currently compatible with High Frequency Start Plasma Cutters. Please click here to view compatible cutters.
Tech specs
Features
- Onboard Simple Trace™ software (no PC required)

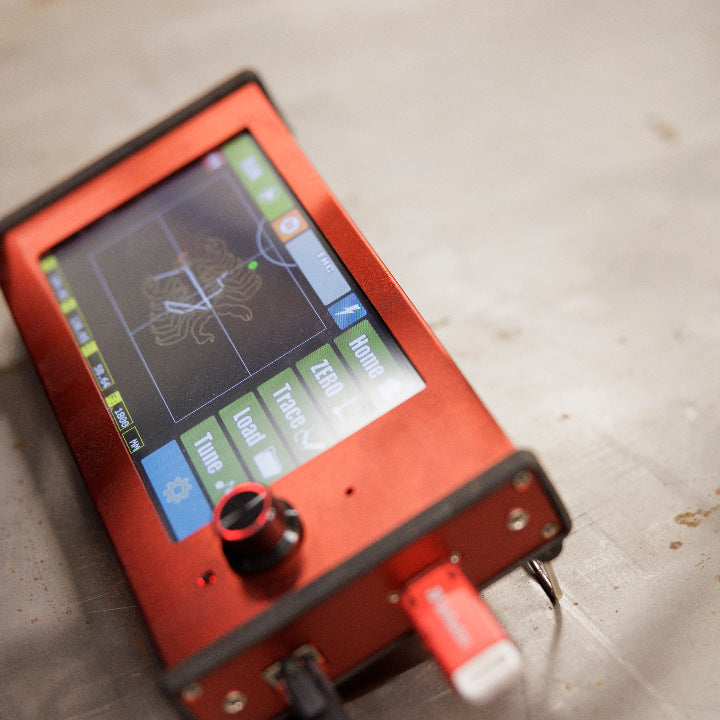

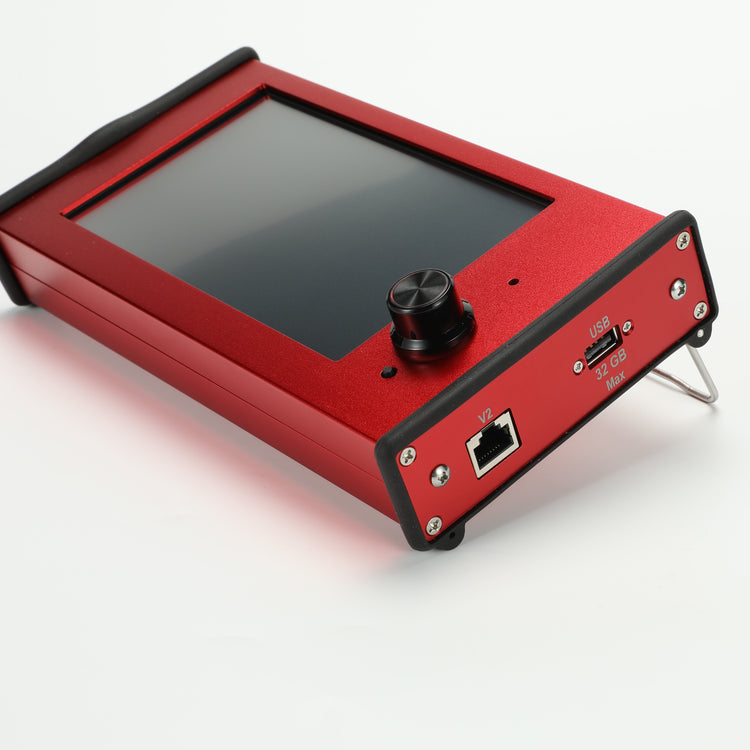

- Glove friendly touch screen
- Works with most hand held plasma cutters*
- Compatible with Fusion 360, SheetCAM, QCAD, Pronest
- Save projects as DXF or G-Code

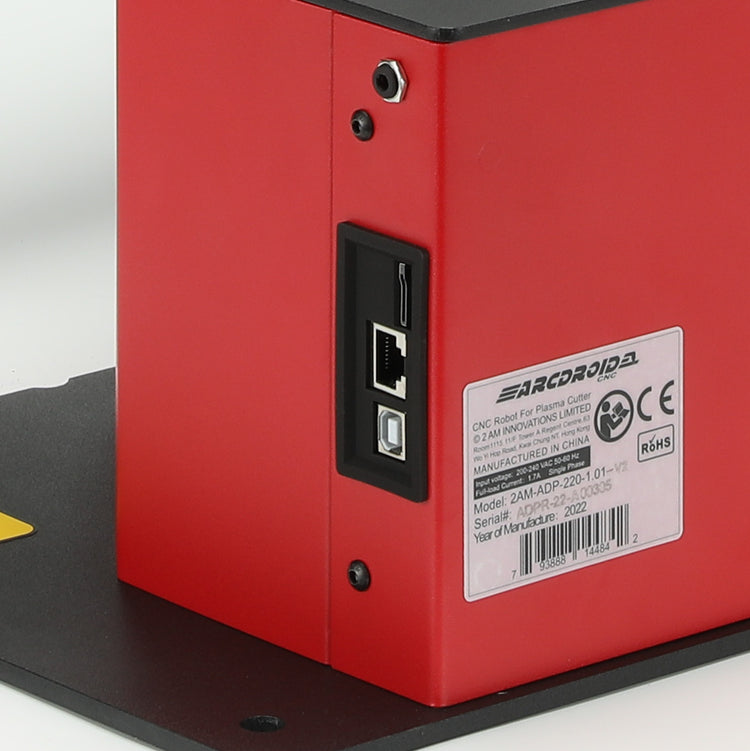

- USB import of DXF and G-Code†
- Lightweight <17 Kg (38 Lbs)
- Compact 50 x 36 x 25 cm (20 x 14 x 10 in)
- Repositionable to increase cut envelope

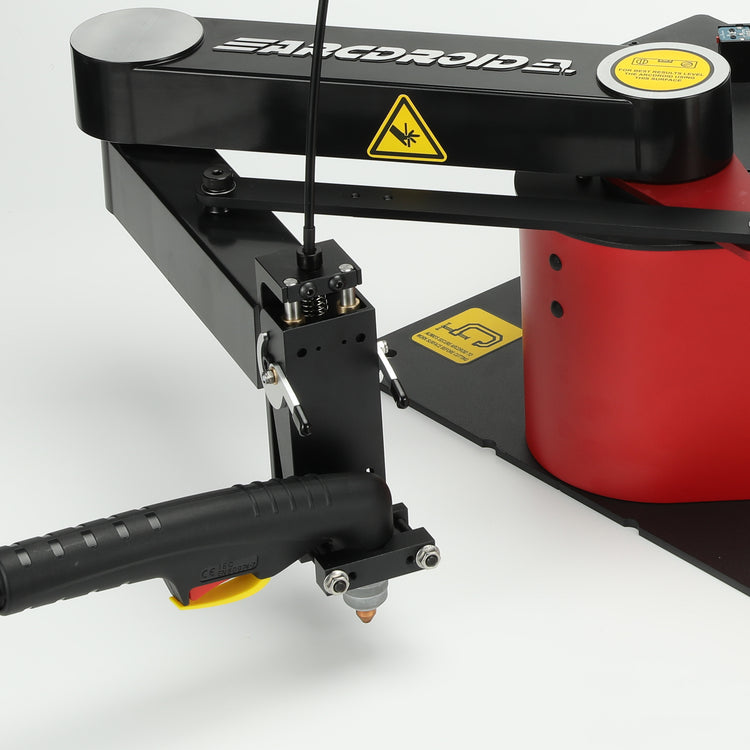

- Programmable pierce and cut heights
- Adjustable kerf compensation
- Full mechanical Z probing every cut start
- Auto level and Torch Height Compensation**
- Programmable pierce and finish delays
Specification
- Cutting envelope 660 x 380mm (26 x 15 in)
- 65mm Z travel (2.5 in)
- Max cut speed 5,000mm/min (200 in/min)
- Max travel 8,000 mm/min (315 in/min)

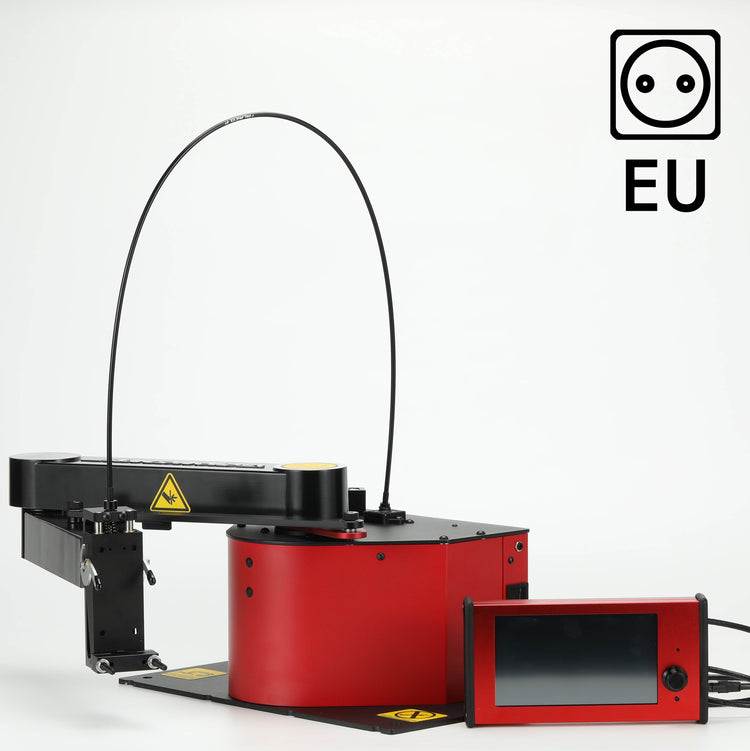

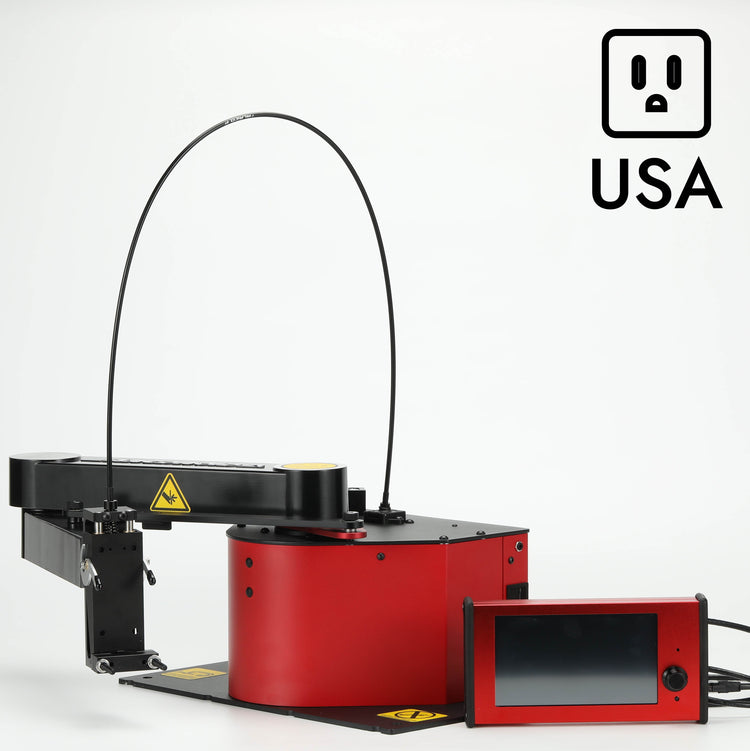

- 120V and 240V versions
- UL/CSA Certified
- CE Certified
Notes
- *Requires low frequency start plasma cutter (HF start can cause damage)
- †File size limits apply

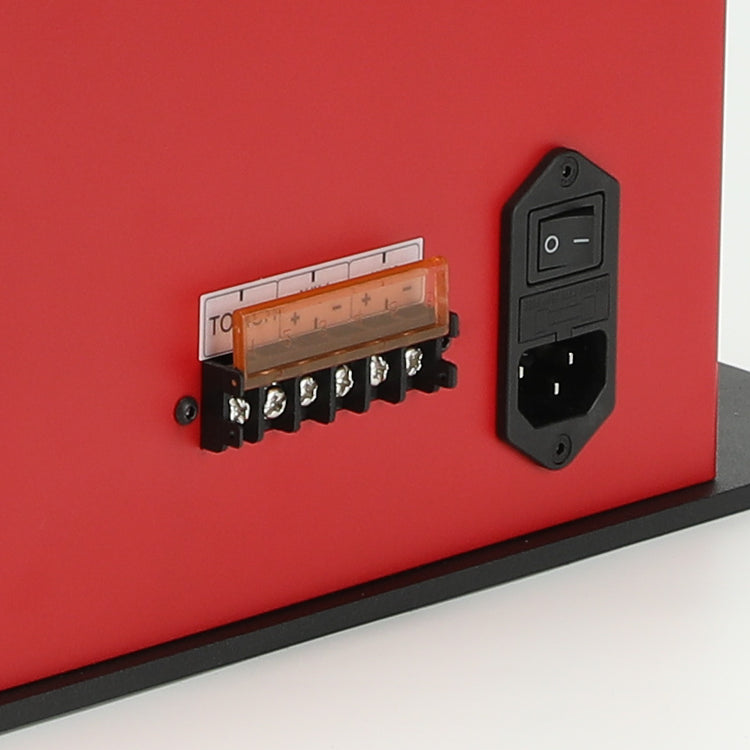

- **THC requires 50:1 divided voltage output
Ready to Cut?
$3,699.00
In stock — ships internationally
$3,699.00
The Details
Get to Know the ArcDroid™
Description

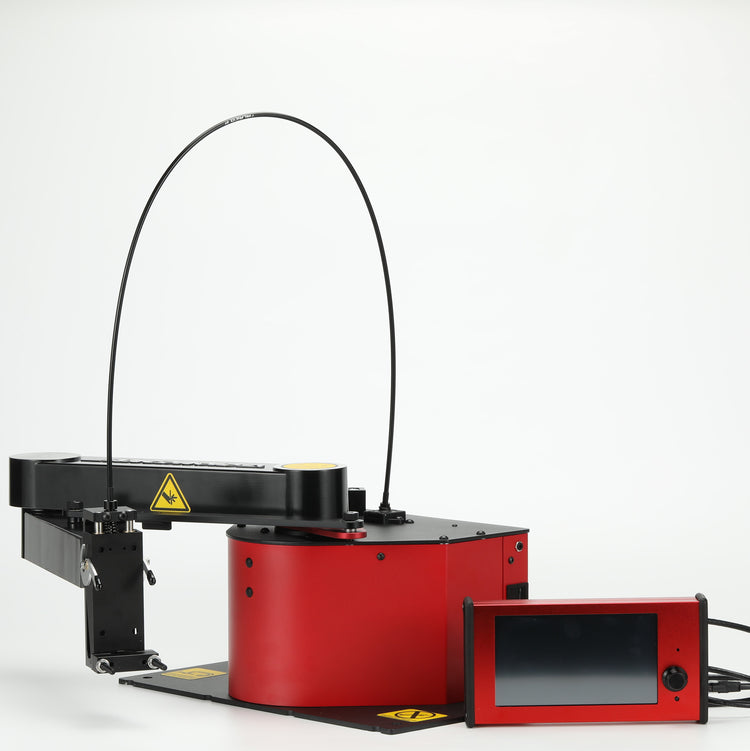

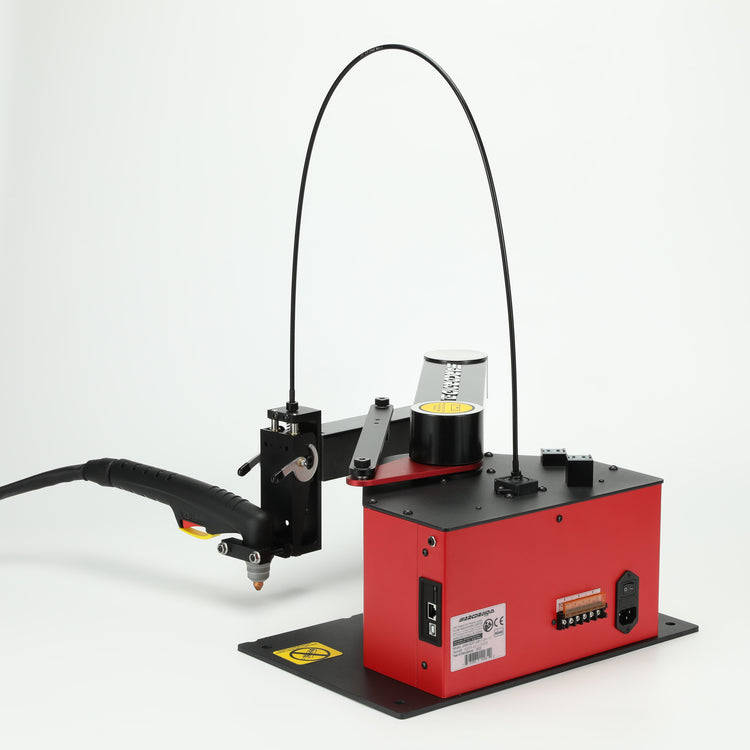

The ArcDroid™ CNC Table Top Plasma Robot is a revolutionary tool designed for precision metal cutting. Its compact design makes it ideal for small workshops and hobbyists, yet it delivers professional-grade results. With user-friendly software and robust construction, the ArcDroid™ is perfect for a wide range of cutting applications, from intricate art pieces to industrial components.
Features
- Compact Design: Fits easily on any workbench, saving space without compromising on performance.
- User-Friendly Software: Comes with proprietary software that is easy to install and operate.
- Wide Cutting Area: 26" x 15" (660mm x 380mm) cutting area for handling diverse projects.
- Compatibility: Works with most non-high frequency plasma cutters.
- Community Support: Access to an active user forum and extensive tutorial resources.
Why choose ArcDroid™?
Choosing the ArcDroid™ means investing in a high-quality, reliable plasma cutting solution. With its easy setup, intuitive software, and robust community support, the ArcDroid™ stands out as a top choice for both hobbyists and professionals. Its versatility and precision make it an invaluable tool for any metalworking project, ensuring you achieve the best results every time. Plus, with our 1-year warranty and dedicated customer support, you can have peace of mind knowing your investment is protected.
How can the ArcDroid™ help me?
The ArcDroid™ can significantly enhance your metalworking projects by providing precise, clean cuts with ease. Whether you are a hobbyist creating intricate art pieces or a professional fabricating industrial components, the ArcDroid™ offers:
- Efficiency: Reduces cutting time and increases productivity.
- Precision: Delivers accurate cuts, reducing the need for additional finishing work.
- Versatility: Handles a variety of metal types and thicknesses.
- Ease of Use: User-friendly software and straightforward setup.
- Creativity: Enables complex designs and detailed work difficult to achieve manually.
Simple Trace Software
The ArcDroid™ features Simple Trace software, a self-contained system that eliminates the need for an additional computer. Simple Trace allows you to:
- Trace Templates: Use the included tracing stylus to trace and digitize your parts or hand-made templates for easy repeated cutting.
- Intuitive Interface: Navigate the software with ease, even with no prior CNC experience.
- Precision Tracing: Achieve highly accurate cuts with advanced algorithms.
- Integrated Operation: All file tracing and cutting operations managed directly by the Simple Trace™ controller.
- Two Tracing Modes: Point-to-point for straight geometry and holes, freehand for curves — mix both in a single trace.
- Save & Repeat: Every trace becomes a stored cut file you can re-run, adjust, or export as G-Code by USB.
The ArcDroid™ CNC Table Top Plasma Robot is a revolutionary tool designed for precision metal cutting. Its compact design makes it ideal for small workshops and hobbyists, yet it delivers professional-grade results. With user-friendly software and robust construction, the ArcDroid™ is perfect for a wide range of cutting applications, from intricate art pieces to industrial components.
- Compact Design: Fits easily on any workbench, saving space without compromising on performance.
- User-Friendly Software: Comes with proprietary software that is easy to install and operate.
- Wide Cutting Area: 26" x 15" (660mm x 380mm) cutting area for handling diverse projects.
- Compatibility: Works with most non-high frequency plasma cutters.
- Community Support: Access to an active user forum and extensive tutorial resources.
Choosing the ArcDroid™ means investing in a high-quality, reliable plasma cutting solution. With its easy setup, intuitive software, and robust community support, the ArcDroid™ stands out as a top choice for both hobbyists and professionals. Its versatility and precision make it an invaluable tool for any metalworking project, ensuring you achieve the best results every time. Plus, with our 1-year warranty and dedicated customer support, you can have peace of mind knowing your investment is protected.
The ArcDroid™ can significantly enhance your metalworking projects by providing precise, clean cuts with ease. Whether you are a hobbyist creating intricate art pieces or a professional fabricating industrial components, the ArcDroid™ offers:
- Efficiency: Reduces cutting time and increases productivity.
- Precision: Delivers accurate cuts, reducing the need for additional finishing work.
- Versatility: Handles a variety of metal types and thicknesses.
- Ease of Use: User-friendly software and straightforward setup.
- Creativity: Enables complex designs and detailed work difficult to achieve manually.
The ArcDroid™ features Simple Trace software, a self-contained system that eliminates the need for an additional computer. Simple Trace allows you to:
- Trace Templates: Use the included tracing stylus to trace and digitize your parts or hand-made templates for easy repeated cutting.
- Intuitive Interface: Navigate the software with ease, even with no prior CNC experience.
- Precision Tracing: Achieve highly accurate cuts with advanced algorithms.
- Integrated Operation: All file tracing and cutting operations managed directly by the Simple Trace™ controller.
- Two Tracing Modes: Point-to-point for straight geometry and holes, freehand for curves — mix both in a single trace.
- Save & Repeat: Every trace becomes a stored cut file you can re-run, adjust, or export as G-Code by USB.
Simple Trace™ — Trace It
Trace Anything You Can Touch
Point-to-point for straight runs and bolt holes. Freehand for organic curves. Guide the stylus around anything you can outline — cardboard, MDF, an old bracket — and high-accuracy encoders map every move into a clean toolpath. No scanning, no photographing, no CAD reconstruction: the template in your hands becomes the part on your bench.
Simple Trace™ — Save It
Save It. Cut It Again and Again.
Every trace is saved on the controller as a real cut file. Dial in kerf compensation, pierce height and cut height on the glove-friendly touchscreen, then run it — once or a hundred times, every part identical. Export as G-Code by USB and re-cut last month's job in the time it takes to clamp the plate.
Prefer CAD?
Precision Cuts From Any CAM
Already work in CAD? Load DXF or G-Code from Fusion 360, SheetCAM, QCAD or Pronest by USB — free post processors are on the Downloads page. Simple Trace™ runs computer-made files with the same pierce control, kerf compensation and torch-height logic it applies to your traces.

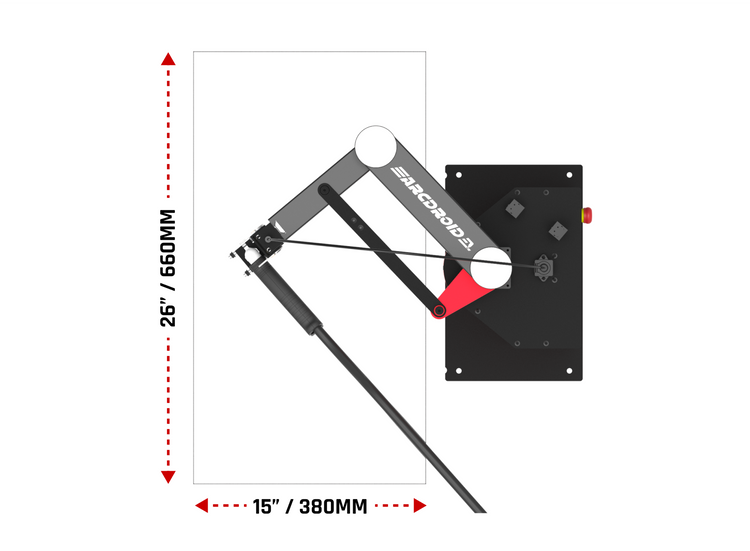

Work Envelope
Cutting Area
The ArcDroid™ offers a generous cutting area of 26" x 15" (660mm x 380mm), providing ample space for most projects, whether intricate designs or larger pieces. The machine is repositionable to increase the cut envelope — or add the X2 Large Cut Indexing System to increase max cut width up to 48" (1200 mm).
Comparison
See How We Compare
| Feature | ArcDroid | Langmuir | ArcBro Spark |
|---|---|---|---|
| Cut area | 26x15 | 23X25 | 23X23 |
| Speed | 215 in/m | 300 in/m | 236 in/m |
| Full z-axis | Yes | Not available | Not available |
| THC | Yes | Not available | Not available |
| Portable | Yes | Not available | Not available |
| Built-in software | Yes | Not available | Not available |
| Tracing function | Yes | Not available | Not available |
| Touchscreen display | Yes | Not available | Not available |
Simple Trace™
You Trace It. It Cuts It.
No CAD. No computer. Guide the stylus around your template — point-to-point or freehand — and Simple Trace™ turns your motion into a precise cut file you can run again and again.
Why Choose Us
We Have Your Back
Forum Community
Ask a question and get help, share your latest projects or just chat with ArcDroid™ users. We have your back, supporting you with your projects.
Join us NowCustomer Service
Peace of mind with our support through email, chat or a call.
Contact usUpdates & Downloads
Use the links below to get the latest firmware and post processors
Browse downloadsSupport
Frequently Asked Questions
What is the ArcDroid™ CNC Table Top Plasma Robot?
The ArcDroid™ CNC Table Top Plasma Robot is a compact, powerful plasma cutting system designed for both hobbyists and professionals. It brings precise CNC cutting capabilities to your workspace, allowing for clean and intricate designs with ease.
How easy is it to set up the ArcDroid™?
The Arcdroid works out of the box, no assembly required. Setup and calibration takes less than 15 minutes.
Do I need any additional software to operate the ArcDroid™?
No additional software is needed. The ArcDroid™ comes with its own easy-to-install and use software, ensuring you can start cutting right away. Regular updates are provided to keep your system running smoothly.
What materials can I cut with the ArcDroid™?
The ArcDroid™ can cut a wide range of conductive metals, including steel, aluminum, stainless steel, and brass. It's perfect for various projects, from metal art to industrial parts.
Is the ArcDroid™ compatible with all plasma cutters?
The ArcDroid™ is compatible with nearly all non-high frequency cutters. For more information, you can check our compatibility guide to ensure your plasma cutter works seamlessly with the ArcDroid™. Our support team is also available to assist with any questions.
What is the cutting reach of the ArcDroid™?
The ArcDroid™ offers a generous cutting area of 26" x 15" (660mm x 380mm), providing ample space for most projects, whether intricate designs or larger pieces.
Is there a community or support for ArcDroid™ users?
Yes, there is a strong community and support system for ArcDroid™ users. Our online forums, customer service team, and various resources ensure you have all the help you need for your projects.
How can I stay updated on software and firmware updates?
Subscribe to our newsletter and join our online community to stay updated with the latest software and firmware updates. Our website also offers the latest downloads and instructions.
What are the shipping options for the ArcDroid™?
We offer express shipping options from our warehouses in the US, Canada, the EU, and Hong Kong. Tracking information is provided so you can monitor your delivery every step of the way.
Is there any training or tutorials available?
Yes, we offer extensive training and tutorials. Our YouTube channel features tutorial videos covering all aspects of learning the system. Our community forum is a great place to find tips, ask questions, and share experiences.
