What is the ArcDroid™ CNC Table Top Plasma Robot?
Save $200 on bundle with ArcDroid

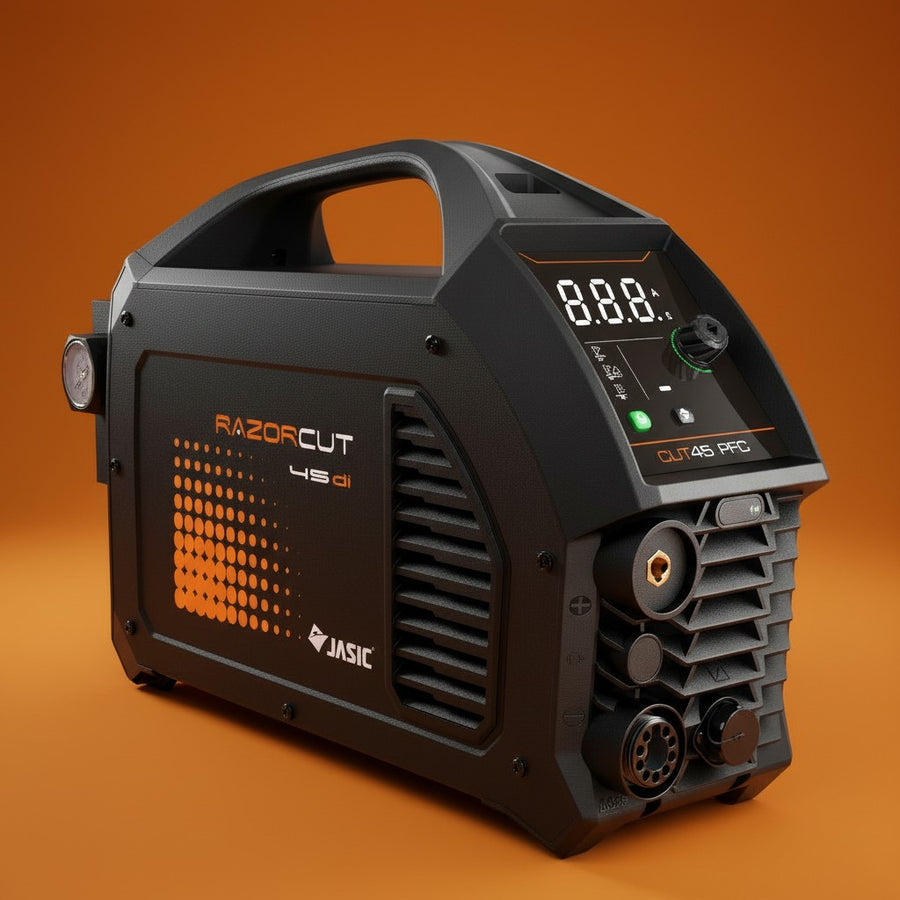

Razorweld RazorCut 45di + HYP 45A Hand Torch
Plug & Play with Razorcut 45 DI
$1,499.00
Get cutting with ArcDroid right out of the box. Includes upgraded HYP45 torch and FREE connection cable.
- Plug & Play connection to ArcDroid
- ArcDroid 9-pin connection cable (FREE — $59.99 value)
- Includes HYP45 hand torch with 19.5ft lead
- 45A cutting capacity · Pilot arc start · Perforated cutting mode · Smart fan
- 3-year manufacturer warranty from Razorweld
Ships from the United States
--:--:--
ArcDroid™ CNC Plasma RobotPlug & Play with Razorcut 45 DI
Razorweld Plasma Cutting Kit HYP45
Frequently Asked Questions
One cable. Plug the included 9-pin cable from the Razorcut's CNC port into your ArcDroid. Mount the torch in the clamp. Done — ArcDroid controls the arc automatically.
Any conductive metal — steel, stainless, aluminum, brass, copper. At 230V: 1/2" clean cut, 1" severance. At 115V: 1/4" clean cut, 3/8" severance.
65–75 PSI, 3.55 CFM minimum. Most 20+ gallon shop compressors handle it fine. 30+ gallon recommended for regular CNC use. Built-in regulator and moisture filter on the rear panel. Use clean, dry air for best consumable life.
Razorcut 45DI, HYP45 torch (19.5ft lead), one set of shielded consumables (installed), 13ft ground cable + clamp, 9-pin ArcDroid connection cable (FREE), dual-voltage power cord, built-in air regulator, manual.
3-year manufacturer warranty from Razorweld. Torch consumables are wear items — not covered, which is standard across all plasma brands. CSA certified.

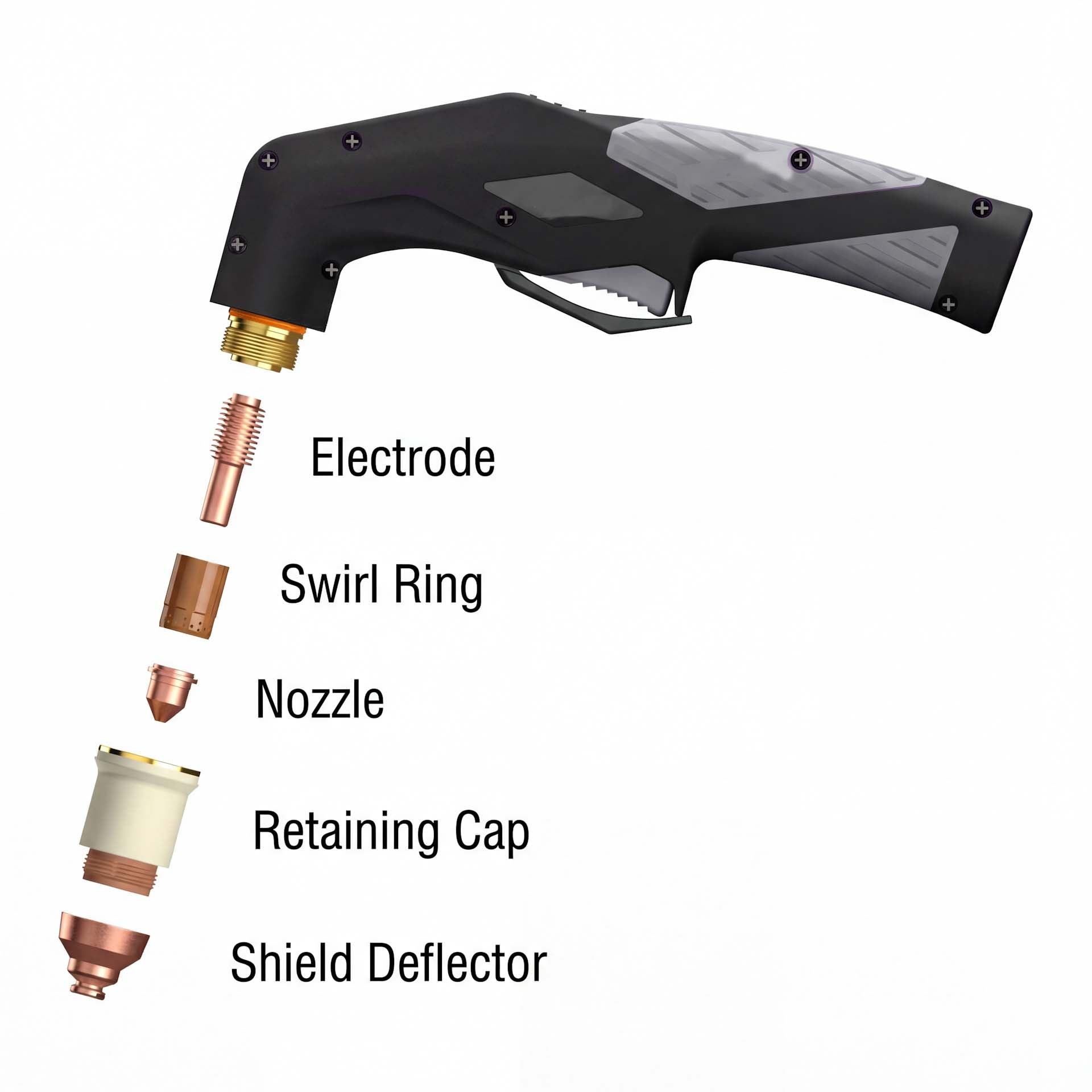

The stock J45XC is unshielded. The HYP45 adds a shield cup that protects the nozzle from spatter, giving you cleaner cuts, 2–3× longer consumable life, and less dross. HYP45 consumables are cross-compatible with Hypertherm Powermax45 parts.
🔌 INCLUDES FREE ARCDROID CONNECTION CABLE
WHY THE HYP45 TORCH
CHANGES EVERYTHING
Technical Specifications
Razorweld Razorcut 45DI · Model CUT45PFC · US Version
| Arc Start | Pilot arc (non-high frequency) — CNC safe |
| Max Output | 45A @ 230V · 30A @ 115V |
| Clean Cut (Steel) | 1/2" @ 230V · 1/4" @ 115V |
| Severance Cut | 1" @ 230V · 3/8" @ 115V |
| Current Range | 20–45A (230V) · 20–30A (115V) |
| Duty Cycle | 25% @ 45A |
| Input Voltage | 95–265V AC auto-sensing (dual voltage) |
| Input Draw | 23A @ 230V · 31A @ 115V |
| Input Power | 5.3 kVA @ 230V · 3.6 kVA @ 115V |
| Air Pressure | 65–75 PSI (4.5–5.0 bar) |
| Air Flow | 3.55 CFM (100 L/min) |
| Torch | HYP45 shielded hand torch · 19.5ft lead |
| CNC Interface | 9-pin aviation socket (front panel) |
| Cutting Modes | 2T continuous · 4T continuous · Mesh (perforated) |
| No-Load Voltage | 300V DC |
| Power Factor | 0.99 (PFC) |
| Smart Fan | Yes — on-demand temperature sensing |
| Weight | 22 lbs (unit) · 32 lbs (shipped) |
| Dimensions | 21.5" × 6.55" × 13.5" |
| Protection | IP23S · Overheat · Overcurrent · Overvoltage |
| Certifications | CSA (US & Canada) · EN60974-1 |
| Warranty | 3 years (power source) |
Cutting Speed Reference — 45A, 230V
| Thickness | Mild Steel | Stainless | Aluminum |
|---|---|---|---|
| 16ga / 1mm | 312 in/min 7925 mm/min |
228 in/min 5790 mm/min |
228 in/min 5790 mm/min |
| 3/16" / 5mm | 48 in/min 1220 mm/min |
38 in/min 975 mm/min |
38 in/min 975 mm/min |
| 3/8" / 10mm | 28 in/min 700 mm/min |
20 in/min 500 mm/min |
20 in/min 500 mm/min |
| 5/8" / 15mm | 16 in/min 396 mm/min |
8 in/min 198 mm/min |
8 in/min 198 mm/min |
Speeds approximate. Results vary with material condition, air quality, and consumable wear. Set ArcDroid feed rate to match.
Torch Comparison
Stock
J45XC Torch
Included with standard Razorcut 45 (non-DI)
- Unshielded nozzle — exposed to spatter
- Shorter consumable life
- More dross on cuts
- Proprietary consumables only
Included in DI Bundle
HYP45 Torch
Shielded hand torch · 19.5ft lead
- Shield cup protects nozzle from spatter
- 2–3× longer consumable life
- Cleaner cuts with less dross
- Cross-compatible with Hypertherm Powermax45 consumables
Compatible consumables: Hypertherm Powermax45 shielded nozzle & electrode — widely available and cost-effective.
